Piston valves are a fundamental component in various brass instruments, including the trumpet, cornet, euphonium, and tuba. These mechanical devices control the flow of air through the instrument’s tubing, allowing musicians to change pitch and access a wider range of notes. Despite their widespread use, the inner workings of piston valves are often underappreciated or misunderstood by those new to brass playing. This comprehensive article dives deep into the mechanics, history, variations, maintenance, and musical implications of piston valves.
Understanding piston valves is essential for brass players, repair technicians, and even composers who wish to grasp the performance possibilities and limitations of valve brass instruments. In this article, we will explore everything from their design and operation to their impact on tone and technique. We will also compare them to other valve systems and discuss common maintenance practices that keep them operating smoothly.
What Are Piston Valves?
Piston valves are cylindrical devices housed within casings in brass instruments. Their primary function is to reroute the airflow through additional lengths of tubing when depressed, effectively changing the length of the instrument and, by extension, its pitch.
When a piston valve is not engaged, air travels through the main tubing of the instrument in a relatively straight line. When the valve is pressed, it pushes a cylindrical piston with ports (holes) down inside its casing. These ports redirect the air through one or more additional loops of tubing. Each valve adds a specific length of tubing, corresponding to a half-step (1st valve), whole step (2nd valve), or one and a half steps (3rd valve), although variations exist depending on the instrument.
Functionality and Airflow
The piston itself has holes drilled in specific patterns to allow airflow when aligned correctly. These patterns correspond with the instrument’s design and the valve’s intended pitch change. When the valve is in its resting position, air passes directly through the ports aligned with the tubing. When the valve is depressed, the ports reroute the airflow through an extra tubing loop.
This redirection changes the effective length of the instrument’s air column, lowering the pitch by a specific interval. When combinations of valves are used, the air is routed through multiple tubing extensions, allowing for a more extended pitch range.
Historical Background of Piston Valves
Piston valves were invented in the early 19th century as part of a broader revolution in brass instrument development. Before their invention, brass instruments were largely limited to the natural harmonic series, which meant players could only perform certain notes without manipulating their embouchure.
The invention of valves revolutionized brass instruments by allowing them to play fully chromatic scales with relative ease. Heinrich Stölzel and Friedrich Blühmel were among the first to create a working valve mechanism in the early 1800s, although theirs was a rotary valve system. Piston valves, also known as “Perinet valves” after François Périnet, emerged slightly later in France around 1838. Périnet’s design was more linear in function and eventually became the standard in many brass instruments, particularly in the trumpet and cornet.
Piston valves allowed brass players greater musical flexibility and facilitated the integration of brass instruments into orchestras, military bands, and solo performances. Over time, the piston valve design was refined for better response, durability, and ease of maintenance.
Anatomy of a Piston Valve
Understanding the anatomy of a piston valve is key to grasping how it functions and why proper maintenance is critical. Each piston valve consists of several components:
1. The Valve Casing
This cylindrical chamber houses the piston itself. It is built into the instrument’s body and must be machined to tight tolerances to ensure a good seal and smooth operation.
2. The Piston
The piston is a cylindrical metal piece that moves vertically within the casing. It contains air channels or ports, which are carefully drilled and aligned to reroute air through the tubing when depressed.
3. Ports
These are the openings in the piston that align with the tubing inside the valve casing. Their position determines how air is routed when the valve is in the up or down position.
4. Valve Stem and Finger Button
The valve stem protrudes from the top of the piston and connects to the finger button. This is the part of the valve that the player presses during performance.
5. Valve Spring
This spring sits either at the bottom or top of the valve casing, depending on design, and helps the piston return to its original position when released.
6. Valve Guide
The valve guide keeps the piston correctly oriented within the casing so that the ports align properly. Valve guides can be made of metal or plastic, each offering different wear characteristics.
7. Valve Cap and Bottom Cap
The top valve cap secures the valve in place and allows access for oiling. The bottom cap provides additional support and access for maintenance.
Advantages of Piston Valves
Fast Action: Piston valves enable quick note changes, ideal for fast passages in technical music.
Simpler Maintenance: Easier to disassemble and clean compared to rotary valves.
Wide Availability: Most student and professional instruments use piston valves, making them more accessible.
Precision: When properly maintained, piston valves offer accurate pitch control and smooth performance.
Disadvantages of Piston Valves
Vertical Motion: The up-and-down movement can fatigue fingers during long playing sessions.
Prone to Sticking: Without regular oiling, valves can seize up during performance.
Tuning Issues: Non-compensated systems require manual slide adjustments to stay in tune.
Piston Valves vs Rotary Valves
Piston valves are often compared to rotary valves, another popular valve system used in horns, tubas, and some trumpets. Each has its own advantages and trade-offs.
Piston Valves
Vertical motion (up and down)
Faster response and often preferred for fast passages
Easier to maintain and clean
Commonly found on trumpets, cornets, and euphoniums
Rotary Valves
Rotational motion (90-degree turn)
Smoother transitions between notes
More complex maintenance
Preferred in orchestral horns and some tubas for their tonal consistency
The choice between piston and rotary valves often comes down to stylistic preference, regional tradition, and instrument application.
Instruments That Use Piston Valves
Many brass instruments utilize piston valves. Some of the most common include:
Trumpet
Arguably the most well-known piston valve instrument. Standard B♭ trumpets use three piston valves to access a full chromatic range.
Cornet
Similar to the trumpet but with a more conical bore, the cornet uses piston valves and is known for its warm, mellow tone.
Euphonium
A low brass instrument with a rich, lyrical sound. Euphoniums typically feature three or four piston valves, sometimes arranged in compensating systems to correct intonation.
Tuba
Tubas may have three to six valves, and while some use rotary valves, many models—especially in American band traditions—use pistons.

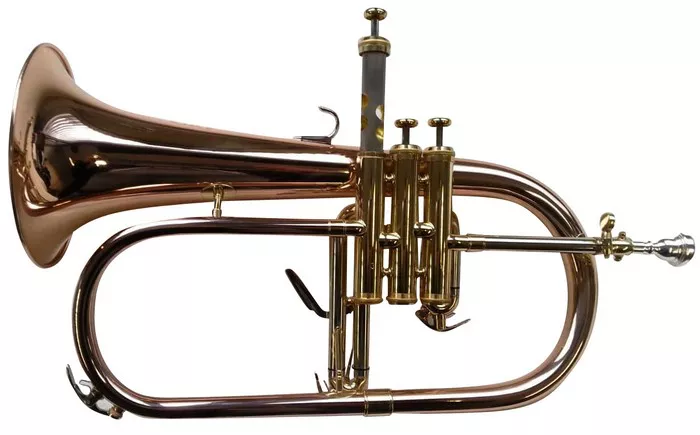

Flugelhorn
This trumpet cousin uses piston valves and a conical bore to produce a softer, rounder tone.
Common Issues and Maintenance
Like any mechanical system, piston valves require regular maintenance to function smoothly. Poor maintenance can result in sluggish action, sticking, or even total failure during performance.
1. Valve Oil Application
Regular oiling is essential to reduce friction and ensure fast action. Players should apply oil directly to the piston by removing the valve and applying a few drops to its surface.
2. Cleaning
Over time, buildup of residue from breath, dirt, and old oil can clog ports or impede valve action. Instruments should be cleaned periodically with a valve brush and mild soap solution.
3. Valve Alignment
Misaligned valves can cause airflow disruption and intonation issues. Ensuring the valve guide is correctly seated helps keep ports properly aligned.
4. Mechanical Wear
Pistons can wear down over time, especially if made of softer metals. In some cases, re-plating or replacement may be necessary to restore tight tolerances.
Conclusion
Piston valves are an essential innovation that transformed the capabilities of brass instruments. Their mechanical simplicity, coupled with the ability to offer chromatic pitch flexibility, has cemented their role in brass design across genres and performance levels. From the bright fanfare of a trumpet solo to the mellow sonority of a euphonium line, piston valves make it all possible.
Understanding the function, maintenance, and performance implications of piston valves empowers musicians to play more effectively, technicians to service instruments more efficiently, and composers to write more idiomatically for brass instruments. As music continues to evolve, the piston valve remains a trusted, responsive, and vital component of the brass family.
