Musical instruments, especially brass instruments, rely heavily on mechanical components to alter pitch and tone, and among these, valves play a crucial role. For anyone serious about understanding brass instruments or advancing their skills, knowing what valves are, how they work, and their significance is essential. This article dives deeply into the concept of valves for instruments, explaining their types, mechanisms, applications, and impact on music performance.
What are Valves in Musical Instruments?
In the context of musical instruments, valves are mechanical devices integrated into the instrument’s tubing to change the length of the air column, which in turn changes the pitch produced. Valves are most commonly associated with brass instruments such as trumpets, tubas, French horns, and euphoniums.
Before valves were invented, brass players could only play notes from the natural harmonic series of the instrument’s tubing length. This severely limited the range of notes available. The invention of valves revolutionized brass instruments by allowing players to access a complete chromatic scale, thus greatly expanding their musical versatility.
The Basic Purpose of Valves
Valves function by redirecting the airflow through additional tubing. When a valve is pressed, it opens a pathway that adds length to the instrument’s tubing, lowering the pitch by a certain interval. When the valve is released, the air flows through the instrument’s standard tubing, and the pitch returns to its original note.
Each valve changes the tubing length by a specific amount:
- The first valve typically lowers the pitch by a whole tone (two semitones).
- The second valve lowers the pitch by a half tone (one semitone).
- The third valve lowers the pitch by one and a half tones (three semitones).
By combining these valves in different ways, players can achieve all the notes between the instrument’s fundamental harmonics, thus enabling full chromatic play.
Historical Background of Valves in Brass Instruments
Before valves were introduced in the early 19th century, brass instruments such as natural horns and trumpets were limited to notes in the harmonic series, which restricted musical compositions and performances.
The invention of valves is attributed to several innovators, notably Heinrich Stölzel and Friedrich Blühmel in the 1810s. Their valve designs transformed the brass world. Soon after, instrument makers began incorporating valves into trumpets, horns, and tubas, enabling musicians to perform complex melodies with greater ease and accuracy.
Materials and Construction of Valves
Valves are precision components that require high-quality materials and craftsmanship:
Materials: Commonly made from brass, nickel silver, or stainless steel for durability and smooth action.
Finish: Often nickel-plated or lacquered for corrosion resistance.
Valve pistons: May have felt or cork pads for cushioning and noise reduction.
Valve casings: Precisely machined for airtight seals to prevent air leaks.
The quality of valve construction significantly impacts instrument playability, responsiveness, and longevity.
Types of Valves for Instruments
There are several types of valves, each with its unique mechanism and advantages. The main types are:
1. Piston Valves

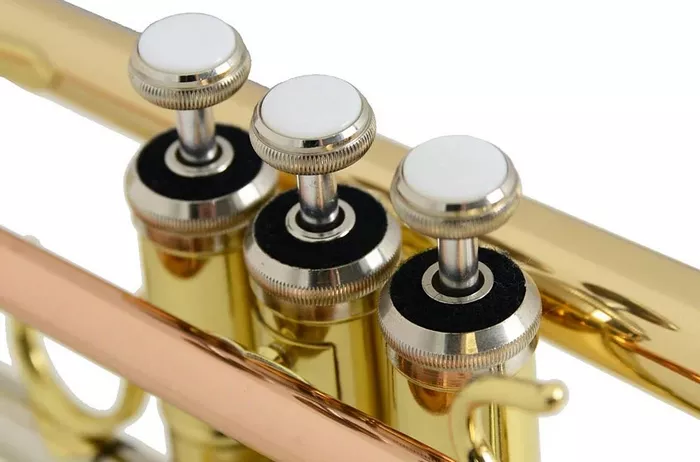

Piston valves are the most common type found in many brass instruments like trumpets, cornets, and tubas. They consist of a cylindrical piston moving up and down inside a valve casing.
When pressed, the piston redirects air through additional tubing.
Piston valves are favored for their quick action and durability.
The player operates the valve by pressing a button or cap on the top.
Advantages:
- Fast and responsive action.
- Easier to maintain and repair.
- Common in American-style brass instruments.
Disadvantages:
- Can sometimes stick if not lubricated properly.
- Requires vertical motion which may affect speed in some cases.
2. Rotary Valves
Rotary valves work by rotating a cylindrical rotor inside the valve casing, which changes the air path to add extra tubing.
Common in French horns, some tubas, and Wagner tubas.
The player operates these valves with a lever connected to a finger ring.
Advantages:
- Smooth and fluid valve action.
- Often preferred in orchestral settings for their tonal qualities.
- More compact valve system compared to pistons.
Disadvantages:
- Slightly slower valve action compared to pistons.
- More complex mechanics can mean higher maintenance.
3. Thayer Valves (Axial Flow Valves)
A specialized valve design combining the benefits of piston and rotary valves. These valves allow air to flow in a more direct path, reducing resistance and improving tone and response.
Often used in custom or high-end instruments.
Favored by some professional players for their efficiency.
How Valve Types Affect Playing Technique and Sound
Each valve type has subtle impacts on playing:
Piston valves allow rapid, clean articulation, suited for fast passages and sharp attacks.
Rotary valves produce a smoother, more connected legato, ideal for lyrical phrasing.
Axial flow valves offer less resistance, providing an open, free-blowing feel.
Players may prefer one valve type over another depending on their musical style and instrument.
How Do Valves Change Pitch?
The physics behind valve operation centers on air column length inside the instrument. The pitch a brass instrument produces depends on the length of the tubing the air vibrates through. Longer tubing produces lower pitches; shorter tubing produces higher pitches.
When a valve is engaged, it routes the airflow through an additional loop of tubing. This added length lowers the fundamental pitch:
- For example, the first valve adds tubing length equivalent to a whole step (two semitones).
- The second valve adds tubing for a half step (one semitone).
- The third valve adds tubing for a minor third (three semitones).
By pressing valves singly or in combination, the player changes the pitch chromatically.
Valve Combinations and Chromatic Playing
One of the most important aspects of valve use is the combinations of valves to produce accurate notes. For example:
- First valve alone lowers pitch by two semitones.
- Second valve alone lowers pitch by one semitone.
- First + second valves together lower pitch by three semitones.
- First + third valves lower pitch by five semitones.
- First + second + third valves lower pitch by six semitones.
Mastery of valve combinations is essential for playing in tune and transitioning smoothly across scales.
Valve Maintenance and Care
Valves must be properly maintained to ensure smooth, responsive performance:
Lubrication: Valve oil or rotary oil should be applied regularly to keep pistons and rotors moving freely.
Cleaning: Periodic cleaning inside the valve casing prevents buildup of dirt and residue.
Alignment: Valves must be properly aligned to ensure the air flows correctly and notes sound in tune.
Repairs: Valve springs and pads may need replacement over time to maintain proper function.
Neglecting valve maintenance leads to sticky valves, sluggish response, and poor tone quality.
Valves in Different Brass Instruments
Here’s how valves are applied in various brass instruments:
Trumpet
Usually has three piston valves.
Provides full chromatic capability.
Valve combinations are essential for all musical styles.
French Horn
Typically uses rotary valves (3-4 valves).
Rotary valves allow for smooth tone transitions.
Additional valves (trigger valves) extend range and alternate fingerings.
Trombone
Primarily a slide instrument; however, some trombones have a valve section called the trigger valve or F-attachment, which adds tubing for lower notes.
The valve here is often rotary.
Tuba and Euphonium
Both usually have 3-5 valves.
Tubas often have rotary or piston valves depending on model and tradition.
More valves expand the range and facilitate complex fingering.
Common Challenges with Valves and How to Overcome Them
Brass players often face challenges related to valves:
Sticky valves: Often caused by lack of lubrication or dirt.
Valve alignment issues: Result in poor air flow and intonation problems.
Valve noise: Can be reduced with proper pads and cushioning.
Regular maintenance and choosing quality valve oil and pads greatly mitigate these issues.
Conclusion
Valves are fundamental to the versatility and expressiveness of brass instruments. They allow musicians to:
- Play chromatic scales.
- Perform complex melodies.
- Change pitch fluidly and accurately.
- Expand the range of their instruments.
Valves have transformed brass instruments from simple harmonic devices into versatile, chromatically capable tools for musical expression. Whether you are a student learning the basics or a professional seeking to refine your technique, mastering valves is key to unlocking the full potential of your instrument.
