The Cor Anglais, also known as the English horn, is a double reed woodwind instrument that plays a unique and rich role in the orchestra. Despite its name, the English horn is not a direct relative of the horn family, nor is it particularly English in origin. It is actually an alto version of the oboe, pitched a fifth lower, and it has a distinct tone that makes it ideal for expressive solo lines and lyrical passages in orchestral settings.
In this article, we will take an in-depth look at each section of the instrument, explaining how they work together to create the beautiful voice of the English Horn. We will also cover important maintenance tips, common issues, and how the design of the instrument influences performance.

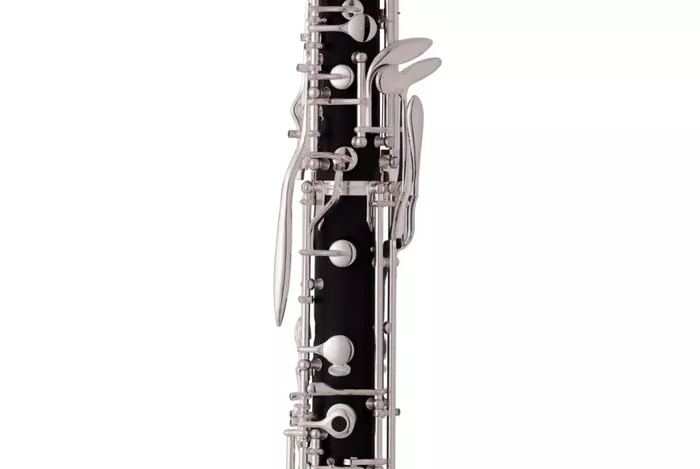

Overview of the Cor Anglais Construction
The Cor Anglais is typically made from grenadilla (African blackwood), although some instruments are made from other types of wood or synthetic materials. It consists of four primary sections:
- The double reed
- The bocal (also known as the crook)
- The upper joint (top section of the body)
- The lower joint and bell (bottom section)
Each of these parts must be properly aligned, maintained, and tuned to ensure optimal performance. Let’s begin by breaking down each component in detail.
1. The Double Reed
The double reed is the heart of the Cor Anglais. It is made from two pieces of cane that are scraped, shaped, and bound together. When air is forced through the narrow opening between the two blades, the reed vibrates, producing sound.
Unlike single reed instruments like the clarinet, the double reed creates a very distinctive tone that is rich in overtones. The quality and condition of the reed are crucial to the player’s ability to produce a controlled and expressive sound.
Reeds are handmade by most professional players and can vary widely in resistance, pitch stability, and tone color. Players often carry several reeds to match different performance situations and acoustic environments.
Key elements of the reed include:
Tip: The very end of the reed where the vibration begins. Thinner tips produce lighter, brighter tones.
Heart: The central section of the reed that controls the stability and richness of the tone.
Spine: A slightly thicker area that runs along the center, contributing to the reed’s strength and vibration consistency.
Binding: The area where the cane is secured onto a staple using thread and glue.
2. The Bocal (Crook)
The bocal is a curved metal tube that connects the reed to the body of the Cor Anglais. It plays a vital role in tuning and tonal flexibility. Bocals come in different lengths and bore sizes to accommodate various playing styles and tonal preferences.
The bocal must fit securely into both the reed and the top joint. It is usually made of silver, nickel, or brass, and its internal shape influences intonation and resonance.
Some important details about the bocal:
Length: Longer bocals lower the pitch, while shorter ones raise it.
Taper: The gradual narrowing influences airflow and tone stability.
Bore: The internal diameter of the bocal significantly affects resistance and projection.
3. Upper Joint
The upper joint is the top wooden section of the main body of the Cor Anglais. It houses several tone holes and key mechanisms that help shape the pitch and tone of the instrument.
Made from dense hardwood, the upper joint is machined with extreme precision. Pads and springs seal the tone holes when keys are pressed, allowing players to change notes.
Key components of the upper joint include:
Tone holes: Strategically placed to allow pitch manipulation by opening or covering with keys.
Keywork: A system of levers and rods that enable fast, smooth note transitions.
Octave key: Helps with the transition between registers by adjusting air flow and reed pressure.
4. Lower Joint and Bell
The lower joint continues the bore and carries more key mechanisms. It aligns perfectly with the upper joint to maintain air column continuity.
The bell, at the end of the instrument, flares outward. This design contributes to the Cor Anglais’ warm and mellow tone, especially in the lower register.
In contrast to the oboe, the English horn’s bell is pear-shaped. This distinct feature helps give the instrument its characteristic timbre.
Key details of the lower joint and bell include:
Key extensions: Keys here work in conjunction with those on the upper joint.
Bell flare: Shapes and amplifies the sound as it exits the instrument.
Tenon connections: Ensure airtight seals between body sections using cork or synthetic rings.
5. Key System and Mechanism
The Cor Anglais has a complex key system derived from the oboe, usually based on the Conservatoire system. This allows advanced technical performance and smooth transitions between notes.
Key system parts include:
Rods and levers: Connect finger-operated keys to tone holes.
Springs: Return keys to their resting positions after being pressed.
Pads: Made of cork, leather, or synthetic materials, they seal tone holes completely when pressed.
Maintaining the key system is essential. Even slight misalignment or dirt can lead to leaks, tuning problems, or mechanical failures.
6. Internal Bore
The bore is the hollow space inside the body of the instrument through which air travels. Its shape—typically conical—affects tuning, tone, and response.
The Cor Anglais has a more gradual conical bore compared to the oboe. This contributes to its darker tone and easier response in the lower register.
Smooth, consistent bore shape ensures accurate pitch and ease of playing. Any obstructions or warping can drastically reduce the instrument’s performance quality.
7. Tenons and Corks
Tenons are the joints that connect each section of the Cor Anglais. These joints are wrapped with cork or synthetic seals to provide airtight connections.
Each tenon must fit snugly without being too tight. Regular greasing prevents drying and cracking, which can cause leaks and poor intonation.
There are typically three main tenon joints:
- Bocal to upper joint
- Upper joint to lower joint
- Lower joint to bell
Material Choices and Their Impact
Though most Cor Anglais instruments are made from grenadilla wood, other materials like rosewood, cocobolo, and even plastic resins are also used. The material affects not only the tone but also the weight, response, and durability of the instrument.
Wood tends to produce a warmer, more complex tone, while synthetic materials offer better resistance to cracking and environmental changes. Professional players often prefer wooden models for tonal reasons, especially in orchestral settings.
How Parts Influence Sound and Performance
The interaction of the Cor Anglais’ parts creates its signature sound. Here’s how each contributes:
Reed: Influences articulation, tone color, and pitch stability.
Bocal: Affects tuning, tone brightness, and ease of blowing.
Bore and bell: Shape resonance and projection.
Keys: Determine finger comfort, speed, and reliability.
Understanding these roles helps performers fine-tune their setup to suit different musical demands—from symphonic solos to chamber pieces.
Conclusion
The Cor Anglais is a sophisticated and expressive instrument whose every part contributes to its distinctive sound. From the finely crafted reed to the graceful bell, each component has been developed with precision and purpose.
By understanding how the parts of the Cor Anglais work together, players can improve their technique, maintenance practices, and overall performance. For composers and arrangers, this knowledge allows more effective writing that respects the instrument’s capabilities.
Whether you are a beginner learning the fundamentals or a seasoned performer refining your craft, knowing your instrument inside and out is key to unlocking its full potential.
